型号

Scout 70 RAl

制造厂商

Nunano

探针描述

硅基探针；Al反射层；

类型

轻敲模式 (气相)

应用

普通样品，扫描形貌

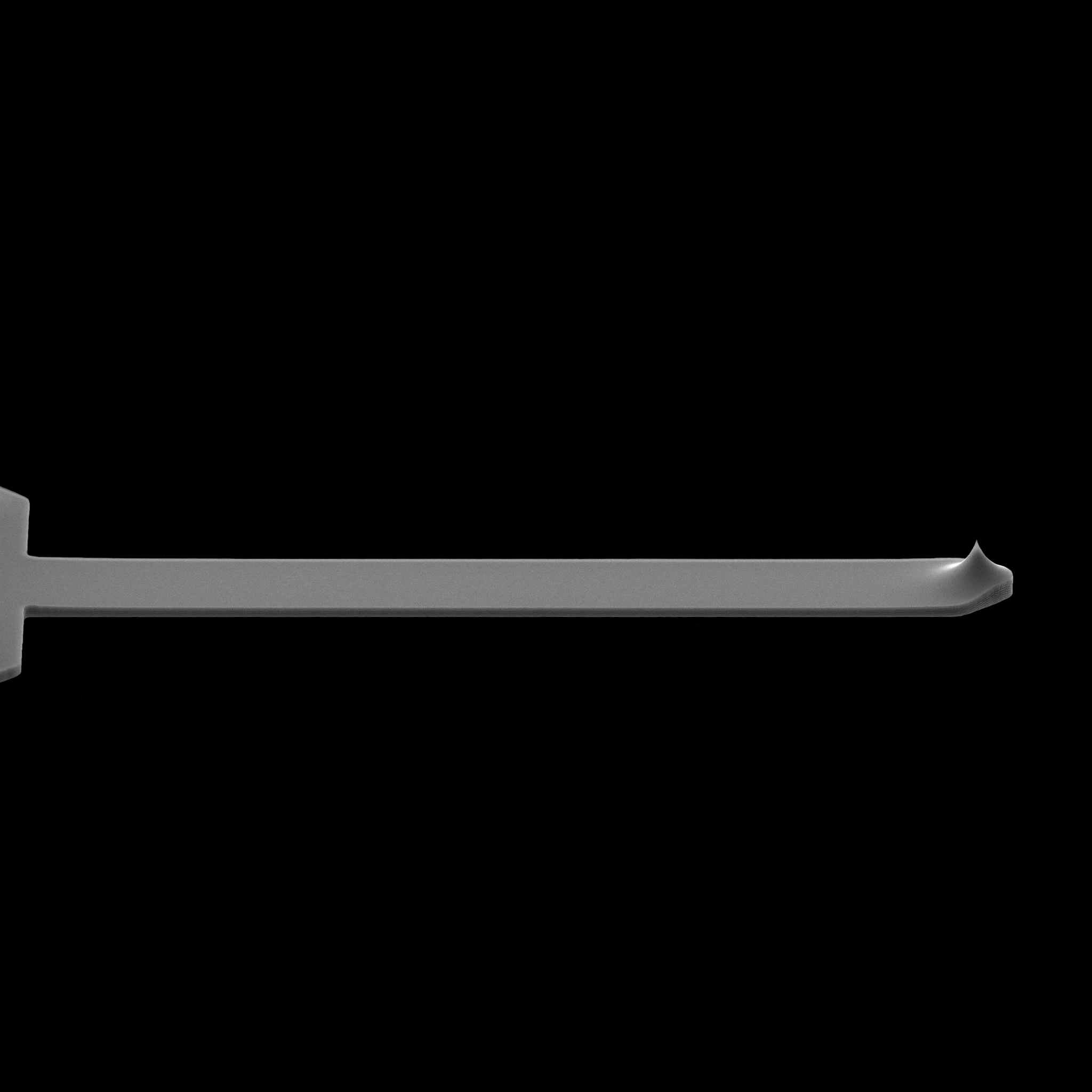

悬臂描述

Lever

1

2

3

4

Spring k (N/m)

2 (0.5 - 3.5)

-

-

-

Freq (kHz)

70 (45 - 80)

-

-

-

Length (µm)

225 (223 - 227)

-

-

-

Width (µm)

30 (28 - 32)

-

-

-

Thickness (µm)

2.5 (2.0 - 3.0)

-

-

-

Shape

rectangular

-

-

-

Material

Silicon

-

-

-

Reflex Coating (nm)

40 nm Al

-

-

-

针尖描述

Tip radius (nm)

5

<10

Tip height (µm)

12

10-13

Set back (µm)

7.5

6.5 – 8.5

Tip shape

Conical

Cone angle (°)

25

15 - 40

Tip material

Silicon (n-type, Antimony

Tip coating (nm)

none

Resistivity (Ωcm)

0.02

0.015-0.025
